Certificate handling. More...

#include "compile_time.h"
#include "src/lib/cert.h"
#include "src/lib/filehandler.h"
#include "src/lib/list.h"
#include "src/lib/log.h"
#include "src/lib/sds_extras.h"
#include <arpa/inet.h>
#include <errno.h>
#include <ifaddrs.h>
#include <netdb.h>
#include <netinet/in.h>
#include <openssl/bn.h>
#include <openssl/conf.h>
#include <openssl/ec.h>
#include <openssl/err.h>
#include <openssl/evp.h>
#include <openssl/opensslv.h>
#include <openssl/pem.h>
#include <openssl/rand.h>
#include <openssl/rsa.h>
#include <openssl/x509v3.h>
#include <string.h>
#include <sys/socket.h>
#include <unistd.h>

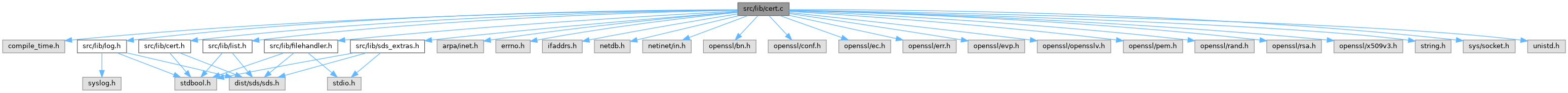

Include dependency graph for cert.c:

Enumerations
enum	expire_check_rcs { CERT_EXPIRE_ERROR = -1 , CERT_EXPIRE_OK = 0 , CERT_EXPIRE_RENEW = 1 }

Functions
static sds	print_asn1_time (sds buffer, const ASN1_TIME *time)

static sds	print_x509_subject (sds buffer, X509 *cert)

static bool	certificates_create (sds dir, sds custom_san)

static void	push_san (struct t_list san_list, const char san)

static sds	get_san (sds buffer)

static bool	generate_set_random_serial (X509 *cert)

static X509_REQ *	generate_request (EVP_PKEY *pkey)

static void	add_extension (X509V3_CTX ctx, X509 cert, int nid, const char *value)

static X509 *	sign_certificate_request (EVP_PKEY ca_key, X509 ca_cert, X509_REQ *req, sds san)

static EVP_PKEY *	generate_keypair (int key_type, unsigned key_bits)

static X509 *	generate_selfsigned_cert (EVP_PKEY *pkey)

static bool	write_to_disk (sds key_file, EVP_PKEY pkey, sds cert_file, X509 cert)

static bool	load_certificate (sds key_file, EVP_PKEY key, sds cert_file, X509 cert)

static bool	create_ca_certificate (sds cakey_file, EVP_PKEY ca_key, sds cacert_file, X509 ca_cert)

static bool	create_server_certificate (sds serverkey_file, EVP_PKEY server_key, sds servercert_file, X509 server_cert, sds custom_san, EVP_PKEY ca_key, X509 ca_cert)

static int	check_expiration (X509 *cert, sds cert_file, int min_days, int max_days)

static bool	certificates_cleanup (sds dir, const char *name)

bool	certificates_check (sds workdir, sds ssl_san)

sds	certificate_get_detail (sds cert_content)

Detailed Description

Certificate handling.

Enumeration Type Documentation

◆ expire_check_rcs

enum expire_check_rcs

Expiration state of certificates

Enumerator
CERT_EXPIRE_ERROR	Error condition.
CERT_EXPIRE_OK	Certificate is valid.
CERT_EXPIRE_RENEW	Certificate should be renewed.

Function Documentation

◆ add_extension()

static void add_extension	(	X509V3_CTX *	ctx,
		X509 *	cert,
		int	nid,
		const char *	value
	)

static

Adds X509V3 extension to the certificate

Parameters

ctx	pointer to already creates X509V3_CTX struct
cert	pointer to X509 struct to add the extension
nid	X509V3 extension to set
value	value for the extension nid

◆ certificate_get_detail()

sds certificate_get_detail ( sds cert_content )

Returns the certificate details

Parameters

cert_content the certificate as pem encoded sds

Returns: certificate details as newly allocated sds

◆ certificates_check()

bool certificates_check	(	sds	workdir,
		sds	ssl_san
	)

Public functions Creates the ssl directory, ca and cert and renews before expired

Parameters

workdir	myMPD working directory
ssl_san	Additional subject alternative names

Returns: true on success else false

◆ certificates_cleanup()

static bool certificates_cleanup	(	sds	dir,
		const char *	name
	)

static

Deletes the key and certificate by name

Parameters

dir	key and certificate directory
name	basename

Returns: true on success else false

◆ certificates_create()

static bool certificates_create	(	sds	dir,
		sds	custom_san
	)

static

Creates the ca and cert and renews before expired

Parameters

dir	key and certificate directory
custom_san	Additional subject alternative names

Returns: true on success else false

◆ check_expiration()

static int check_expiration	(	X509 *	cert,
		sds	cert_file,
		int	min_days,
		int	max_days
	)

static

Checks the expiration date of a certificate

Parameters

cert	pointer to X509 struct
cert_file	filename of the certificate
min_days
max_days

Returns: CERT_EXPIRE_OK if cert is valid gt min_days and lt max_days CERT_EXPIRE_ERROR on error reading certificate CERT_EXPIRE_RENEW cert must be renewed

◆ create_ca_certificate()

static bool create_ca_certificate	(	sds	cakey_file,
		EVP_PKEY **	ca_key,
		sds	cacert_file,
		X509 **	ca_cert
	)

static

Creates a self-signed CA certificate

Parameters

cakey_file	filename to save the key
ca_key	pointer to EVP_KEY struct to populate
cacert_file	filename to save the cert
ca_cert	pointer to X509 struct to populate

Returns: true on success else false

◆ create_server_certificate()

static bool create_server_certificate	(	sds	serverkey_file,
		EVP_PKEY **	server_key,
		sds	servercert_file,
		X509 **	server_cert,
		sds	custom_san,
		EVP_PKEY **	ca_key,
		X509 **	ca_cert
	)

static

Creates the server certificate and signs it with the CA

Parameters

serverkey_file	filename to save the key
server_key	pointer to EVP_KEY struct to populate
servercert_file	filename to save the cert
server_cert	pointer to X509 struct to populate
custom_san	SAN to append
ca_key	CA key for signing
ca_cert	CA cert for signing

Returns: true on success else false

◆ generate_keypair()

static EVP_PKEY * generate_keypair	(	int	key_type,
		unsigned	key_bits
	)

static

Generates a private/public key pair

Parameters

key_type	key type: EVP_PKEY_RSA or EVP_PKEY_EC
key_bits	number of bits for the key

Returns: newly allocated key or NULL on error

◆ generate_request()

static X509_REQ * generate_request ( EVP_PKEY * pkey )

static

Generates a certificate signing request

Parameters

pkey	pointer to private key

Returns: certificate signing request as X509_REQ struct

◆ generate_selfsigned_cert()

static X509 * generate_selfsigned_cert ( EVP_PKEY * pkey )

static

Generates a self-signed x509 certificate.

Parameters

pkey	pointer to the private key

Returns: newly allocated cert or NULL

◆ generate_set_random_serial()

static bool generate_set_random_serial ( X509 * cert )

static

Generates a 20 byte random serial number and sets it in the certificate.

Parameters

cert	pointer to X509 struct to set the serial

Returns: true on success else false

◆ get_san()

static sds get_san ( sds buffer )

static

Gets local hostnames and ips for subject alternative names

Parameters

buffer sds string to populate

Returns: pointer to buffer

◆ load_certificate()

static bool load_certificate	(	sds	key_file,
		EVP_PKEY **	key,
		sds	cert_file,
		X509 **	cert
	)

static

Loads the key and cert from the filesystem

Parameters

key_file	filename for the key
key	pointer to EVP_KEY struct to populate
cert_file	filename for the cert
cert	pointer to X509 struct to populate

Returns: true on success, else false

◆ print_asn1_time()

static sds print_asn1_time	(	sds	buffer,
		const ASN1_TIME *	time
	)

static

Private functions Prints an asn1 time struct to buffer

Parameters

buffer	already allocated sds string
time	asn1 time struct to print

Returns: pointer to buffer

◆ print_x509_subject()

static sds print_x509_subject	(	sds	buffer,
		X509 *	cert
	)

static

Prints x509 subject to buffer

Parameters

buffer	already allocated sds string
cert	x509 certificate

Returns: pointer to buffer

◆ push_san()

static void push_san	(	struct t_list *	san_list,
		const char *	san
	)

static

Adds a uniq string to the san list

Parameters

san_list	pointer to the san list
san	string to add

◆ sign_certificate_request()

static X509 * sign_certificate_request	(	EVP_PKEY *	ca_key,
		X509 *	ca_cert,
		X509_REQ *	req,
		sds	san
	)

static

Signs the certificate request

Parameters

ca_key	CA key for signing
ca_cert	CA cert for signing
req	pointer to the certificate signing request
san	Subject Alternative Name to set

Returns: on success a pointer to allocated X509 struct else NULL

◆ write_to_disk()

static bool write_to_disk	(	sds	key_file,
		EVP_PKEY *	pkey,
		sds	cert_file,
		X509 *	cert
	)

static

Writes the private key and cert to disc

Parameters

key_file	filename to save the key
pkey	pointer to the private key
cert_file	filename to save the cert
cert	pointer to the cert

Returns: true on success else false
