json_rpc.h File Reference

Jsonrpc implementation. More...

#include "dist/sds/sds.h"
#include "src/lib/api.h"
#include <stdbool.h>

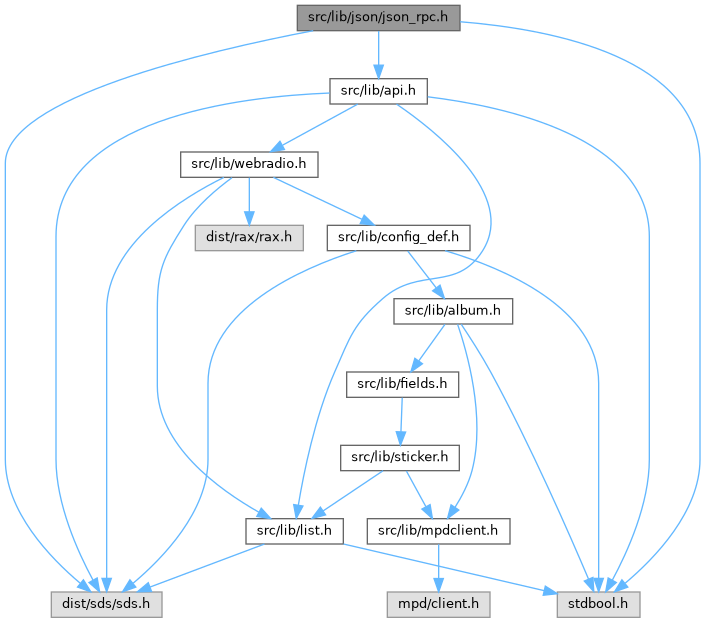

Include dependency graph for json_rpc.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	jsonrpc_response_types { RESPONSE_TYPE_JSONRPC_RESPONSE = 0 , RESPONSE_TYPE_JSONRPC_NOTIFY , RESPONSE_TYPE_PLAIN , RESPONSE_TYPE_NONE }
enum	jsonrpc_severities {   JSONRPC_SEVERITY_EMERG = 0 , JSONRPC_SEVERITY_ALERT , JSONRPC_SEVERITY_CRIT , JSONRPC_SEVERITY_ERROR ,   JSONRPC_SEVERITY_WARN , JSONRPC_SEVERITY_NOTICE , JSONRPC_SEVERITY_INFO , JSONRPC_SEVERITY_DEBUG ,   JSONRPC_SEVERITY_MAX }
enum	jsonrpc_facilities {   JSONRPC_FACILITY_DATABASE = 0 , JSONRPC_FACILITY_GENERAL , JSONRPC_FACILITY_HOME , JSONRPC_FACILITY_JUKEBOX ,   JSONRPC_FACILITY_LYRICS , JSONRPC_FACILITY_MPD , JSONRPC_FACILITY_PLAYLIST , JSONRPC_FACILITY_PLAYER ,   JSONRPC_FACILITY_QUEUE , JSONRPC_FACILITY_SESSION , JSONRPC_FACILITY_SCRIPT , JSONRPC_FACILITY_STICKER ,   JSONRPC_FACILITY_TIMER , JSONRPC_FACILITY_TRIGGER , JSONRPC_FACILITY_MAX }
enum	jsonrpc_events {   JSONRPC_EVENT_MPD_CONNECTED = 0 , JSONRPC_EVENT_MPD_DISCONNECTED , JSONRPC_EVENT_NOTIFY , JSONRPC_EVENT_UPDATE_DATABASE ,   JSONRPC_EVENT_UPDATE_FINISHED , JSONRPC_EVENT_UPDATE_HOME , JSONRPC_EVENT_UPDATE_JUKEBOX , JSONRPC_EVENT_UPDATE_LAST_PLAYED ,   JSONRPC_EVENT_UPDATE_OPTIONS , JSONRPC_EVENT_UPDATE_OUTPUTS , JSONRPC_EVENT_UPDATE_QUEUE , JSONRPC_EVENT_UPDATE_STARTED ,   JSONRPC_EVENT_UPDATE_STATE , JSONRPC_EVENT_UPDATE_STORED_PLAYLIST , JSONRPC_EVENT_UPDATE_VOLUME , JSONRPC_EVENT_WELCOME ,   JSONRPC_EVENT_UPDATE_CACHE_STARTED , JSONRPC_EVENT_UPDATE_CACHE_FINISHED , JSONRPC_EVENT_UPDATE_NEIGHBOR , JSONRPC_EVENT_UPDATE_MOUNT ,   JSONRPC_EVENT_MAX }

Functions
void	send_jsonrpc_notify (enum jsonrpc_facilities facility, enum jsonrpc_severities severity, const char *partition, const char *message)
void	send_jsonrpc_notify_client (enum jsonrpc_facilities facility, enum jsonrpc_severities severity, unsigned request_id, const char *message)
void	send_jsonrpc_event (enum jsonrpc_events event, const char *partition)
sds	jsonrpc_event (sds buffer, enum jsonrpc_events event)
sds	jsonrpc_notify (sds buffer, enum jsonrpc_facilities facility, enum jsonrpc_severities severity, const char *message)
sds	jsonrpc_notify_phrase (sds buffer, enum jsonrpc_facilities facility, enum jsonrpc_severities severity, const char *message, int count,...)
sds	jsonrpc_notify_start (sds buffer, enum jsonrpc_events event)
sds	jsonrpc_respond_start (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id)
sds	jsonrpc_end (sds buffer)
sds	jsonrpc_respond_ok (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id, enum jsonrpc_facilities facility)
sds	jsonrpc_respond_with_ok_or_error (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id, bool rc, enum jsonrpc_facilities facility, const char *error)
sds	jsonrpc_respond_with_message_or_error (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id, bool rc, enum jsonrpc_facilities facility, const char *message, const char *error)
sds	jsonrpc_respond_message (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id, enum jsonrpc_facilities facility, enum jsonrpc_severities severity, const char *message)
sds	jsonrpc_respond_message_phrase (sds buffer, enum mympd_cmd_ids cmd_id, unsigned request_id, enum jsonrpc_facilities facility, enum jsonrpc_severities severity, const char *message, int count,...)

Detailed Description

Jsonrpc implementation.

Enumeration Type Documentation

jsonrpc_events

enum jsonrpc_events

Jsonrpc events

jsonrpc_facilities

enum jsonrpc_facilities

Jsonrpc facilities

jsonrpc_response_types

enum jsonrpc_response_types

Response types for error messages

jsonrpc_severities

enum jsonrpc_severities

Jsonrpc severities

Function Documentation

jsonrpc_end()

sds jsonrpc_end

(

sds

buffer

)

Creates the end of a jsonrpc response

Parameters

buffer

pointer to already allocated sds string

Returns

pointer to buffer with jsonrpc string

jsonrpc_event()

sds jsonrpc_event	(	sds	buffer,
		enum jsonrpc_events	event )

Creates a simple jsonrpc notification with the event as method

Parameters

buffer	pointer to already allocated sds string
event	the event to use

Returns

pointer to buffer with jsonrpc string

jsonrpc_notify()

sds jsonrpc_notify	(	sds	buffer,
		enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		const char *	message )

Creates a jsonrpc notification with facility, severity and a message

Parameters

buffer	pointer to already allocated sds string
facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
message	the message to send

Returns

pointer to buffer with jsonrpc string

jsonrpc_notify_phrase()

sds jsonrpc_notify_phrase	(	sds	buffer,
		enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		const char *	message,
		int	count,
			... )

Creates a jsonrpc notification with facility, severity and a message phrase. A message phrase can include %{key} placeholders that are replaced on the client side with the value. Key/value pairs are variadic arguments.

Parameters

buffer	pointer to already allocated sds string
facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
message	the message to send
count	number of following variadic arguments
...	key/value pairs for the phrase

Returns

pointer to buffer with jsonrpc string

jsonrpc_notify_start()

sds jsonrpc_notify_start	(	sds	buffer,
		enum jsonrpc_events	event )

Creates the start of a jsonrpc notification.

Parameters

buffer	pointer to already allocated sds string
event	the event to use

Returns

pointer to buffer with jsonrpc string

jsonrpc_respond_message()

sds jsonrpc_respond_message	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id,
		enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		const char *	message )

Creates a simple jsonrpc response with a custom message

Parameters

buffer	pointer to already allocated sds string
cmd_id	enum mympd_cmd_ids
request_id	id of the jsonrpc request to answer
facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
message	the response message

Returns

pointer to buffer with jsonrpc string

jsonrpc_respond_message_phrase()

sds jsonrpc_respond_message_phrase	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id,
		enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		const char *	message,
		int	count,
			... )

Creates a jsonrpc response with facility, severity and a message phrase. A message phrase can include %{key} placeholders that are replaced on the client side with the value. Key/value pairs are variadic arguments.

Parameters

buffer	pointer to already allocated sds string
cmd_id	enum mympd_cmd_ids
request_id	id of the jsonrpc request to answer
facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
message	the message to send
count	number of following variadic arguments
...	key/value pairs for the phrase

Returns

pointer to buffer with jsonrpc string

jsonrpc_respond_ok()

sds jsonrpc_respond_ok	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id,
		enum jsonrpc_facilities	facility )

Creates a simple jsonrpc response with "ok" as message

Parameters

buffer	pointer to already allocated sds string
cmd_id	enum mympd_cmd_ids
request_id	id of the jsonrpc request to answer
facility	one of enum jsonrpc_facilities

Returns

pointer to buffer with jsonrpc string

jsonrpc_respond_start()

sds jsonrpc_respond_start	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id )

Creates the start of a jsonrpc response.

Parameters

buffer	pointer to already allocated sds string
cmd_id	enum mympd_cmd_ids
request_id	id of the jsonrpc request to answer

Returns

pointer to buffer with jsonrpc string

jsonrpc_respond_with_message_or_error()

sds jsonrpc_respond_with_message_or_error	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id,
		bool	rc,
		enum jsonrpc_facilities	facility,
		const char *	message,
		const char *	error )

Checks rc and responses with ok or the message

Parameters

buffer	already allocated sds string for the jsonrpc response
cmd_id	enum mympd_cmd_ids
request_id	jsonrpc request id to respond
rc	return code to check
facility	one of enum jsonrpc_facilities
message	the response message, if rc == true
error	the response message, if rc == false

Returns

pointer to buffer

jsonrpc_respond_with_ok_or_error()

sds jsonrpc_respond_with_ok_or_error	(	sds	buffer,
		enum mympd_cmd_ids	cmd_id,
		unsigned	request_id,
		bool	rc,
		enum jsonrpc_facilities	facility,
		const char *	error )

Checks rc and responses with ok or the message

Parameters

buffer	already allocated sds string for the jsonrpc response
cmd_id	enum mympd_cmd_ids
request_id	jsonrpc request id to respond
rc	return code to check
facility	one of enum jsonrpc_facilities
error	the response message, if rc == false

Returns

pointer to buffer

send_jsonrpc_event()

void send_jsonrpc_event	(	enum jsonrpc_events	event,
		const char *	partition )

Creates and sends a jsonrpc event to all connected websockets

Parameters

event	the event to send
partition	mpd partition

send_jsonrpc_notify()

void send_jsonrpc_notify	(	enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		const char *	partition,
		const char *	message )

public functions Jsonrpc printing Creates and sends a jsonrpc notify to all connected websockets for a partition

Parameters

facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
partition	mpd partition
message	the message to send

send_jsonrpc_notify_client()

void send_jsonrpc_notify_client	(	enum jsonrpc_facilities	facility,
		enum jsonrpc_severities	severity,
		unsigned	request_id,
		const char *	message )

Creates and sends a jsonrpc notify to a client

Parameters

facility	one of enum jsonrpc_facilities
severity	one of enum jsonrpc_severities
request_id	the jsonrpc id of the client
message	the message to send
