msg_queue.c File Reference

Message queue implementation. More...

#include "compile_time.h"
#include "src/lib/msg_queue.h"
#include "dist/mongoose/mongoose.h"
#include "src/lib/api.h"
#include "src/lib/event.h"
#include "src/lib/log.h"
#include "src/lib/mem.h"
#include <errno.h>

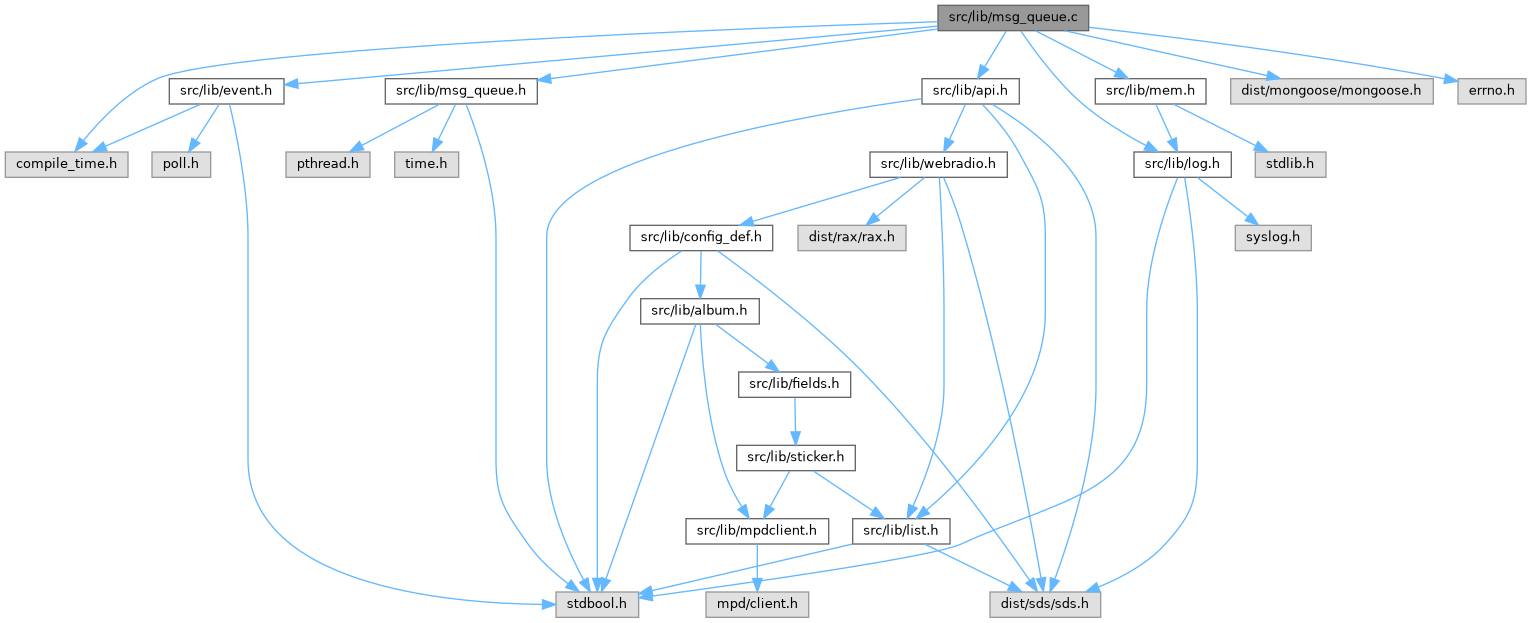

Include dependency graph for msg_queue.c:

Enumerations
enum	{ MSEC_NSEC = 1000000 , SEC_NSEC = 1000000000 , NSEC_MAX = 999999999 }

Functions
static bool	check_for_queue_id (struct t_mympd_queue *queue, unsigned id)
static void	free_queue_node (struct t_mympd_msg *n, enum mympd_queue_types type)
static int	unlock_mutex (pthread_mutex_t *mutex)
static void	set_wait_time (int timeout_ms, struct timespec *max_wait)
struct t_mympd_queue *	mympd_queue_create (const char *name, enum mympd_queue_types type, bool event)
void *	mympd_queue_free (struct t_mympd_queue *queue)
bool	mympd_queue_push (struct t_mympd_queue *queue, void *data, unsigned id)
void *	mympd_queue_shift (struct t_mympd_queue *queue, int timeout_ms, unsigned id)
int	mympd_queue_expire_age (struct t_mympd_queue *queue, time_t max_age_s)
bool	mympd_mg_wakeup_send (const void *data)

Variables
struct t_mympd_queue *	webserver_queue
	Message queue read by webserver thread.
struct t_mympd_queue *	mympd_api_queue
	Message queue read by mympd_api thread.

Detailed Description

Message queue implementation.

Enumeration Type Documentation

anonymous enum

anonymous enum

Time conversion numbers

Function Documentation

check_for_queue_id()

static bool check_for_queue_id ( struct t_mympd_queue *  queue, unsigned  id  )

static

Checks if queue has a entry with requested id

Parameters

queue	Pointer to the queue
id	0 for first entry or specific id

Returns

true if there is an entry, else false

free_queue_node()

static void free_queue_node ( struct t_mympd_msg *  node, enum mympd_queue_types  type  )

static

Frees a queue node, node must be detached from queue

Parameters

node	to free
type	type of the queue QUEUE_TYPE_REQUEST or QUEUE_TYPE_RESPONSE

mympd_mg_wakeup_send()

bool mympd_mg_wakeup_send

(

const void *

data

)

Sends data to the mongoose thread and wake it up

Parameters

data	Data to send

Returns

true on success, else false

mympd_queue_create()

struct t_mympd_queue * mympd_queue_create	(	const char *	name,
		enum mympd_queue_types	type,
		bool	event
	)

Creates a thread safe message queue

Parameters

name	description of the queue
type	type of the queue QUEUE_TYPE_REQUEST or QUEUE_TYPE_RESPONSE
event	create an eventfd?

Returns

pointer to allocated and initialized queue struct

mympd_queue_expire_age()

int mympd_queue_expire_age	(	struct t_mympd_queue *	queue,
		time_t	max_age_s
	)

Expire entries from the queue by age

Parameters

queue	pointer to the queue
max_age_s	max age of nodes in seconds

Returns

number of expired nodes

mympd_queue_free()

void * mympd_queue_free

(

struct t_mympd_queue *

queue

)

Frees all queue nodes and the queue itself

Parameters

queue

pointer to the queue

Returns

NULL

mympd_queue_push()

bool mympd_queue_push	(	struct t_mympd_queue *	queue,
		void *	data,
		unsigned	id
	)

Appends data to the queue

Parameters

queue	pointer to the queue
data	struct t_work_request or t_work_response
id	id of the queue entry

Returns

true on success else false

mympd_queue_shift()

void * mympd_queue_shift	(	struct t_mympd_queue *	queue,
		int	timeout_ms,
		unsigned	id
	)

Gets the first entry or the entry with specific id

Parameters

queue	pointer to the queue
timeout_ms	timeout in ms to wait for a queue entry, 0 to wait infinite -1 for no wait
id	0 for first entry or specific id

Returns

t_work_request or t_work_response

set_wait_time()

static void set_wait_time ( int  timeout_ms, struct timespec *  max_wait  )

static

Populates the timespec struct with time now + timeout

Parameters

timeout_ms	timeout in ms
max_wait	timespec struct to populate

unlock_mutex()

static int unlock_mutex ( pthread_mutex_t *  mutex )

static

Unlocks the queue mutex

Parameters

mutex

the mutex to unlock

Returns

0 on success, else 1
