timer.h File Reference

myMPD timer API More...

#include "dist/sds/sds.h"
#include "src/lib/config/mympd_state.h"
#include "src/lib/json/json_query.h"

Include dependency graph for timer.h:

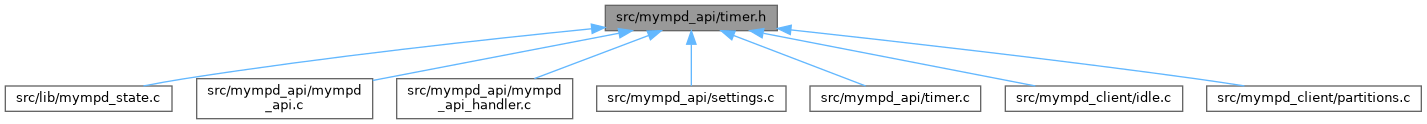

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	t_timer_node

Typedefs
typedef void(*	timer_handler) (unsigned timer_id, struct t_timer_definition *definition, struct t_mympd_state *mympd_state)

Enumerations
enum	timer_intervals { TIMER_ONE_SHOT_REMOVE = -1 , TIMER_ONE_SHOT_DISABLE = 0 }

Functions
void	mympd_api_timer_timerlist_init (struct t_timer_list *l)
void	mympd_api_timer_timerlist_clear (struct t_timer_list *l)
bool	mympd_api_timer_check (int fd, struct t_timer_list *timer_list, struct t_mympd_state *mympd_state)
bool	mympd_api_timer_save (struct t_partition_state *partition_state, struct t_timer_list *timer_list, int interval, unsigned timerid, struct t_timer_definition *timer_def, sds *error)
bool	mympd_api_timer_add (struct t_timer_list *l, int timeout, int interval, timer_handler handler, unsigned timer_id, struct t_timer_definition *definition)
bool	mympd_api_timer_add_uniq (struct t_timer_list *l, int timeout, int interval, timer_handler handler, unsigned timer_id, struct t_timer_definition *definition)
bool	mympd_api_timer_replace (struct t_timer_list *l, int timeout, int interval, timer_handler handler, unsigned timer_id, struct t_timer_definition *definition)
bool	mympd_api_timer_remove (struct t_timer_list *l, unsigned timer_id)
bool	mympd_api_timer_remove_by_fd (struct t_timer_list *l, int fd)
int	mympd_api_timer_remove_partition (struct t_timer_list *l, sds partition)
bool	mympd_api_timer_toggle (struct t_timer_list *l, unsigned timer_id, sds *error)
void *	mympd_api_timer_free_definition (struct t_timer_definition *timer_def)
struct t_timer_definition *	mympd_api_timer_parse (sds str, const char *partition, struct t_json_parse_error *error)
int	mympd_api_timer_calc_starttime (int start_hour, int start_minute, int interval)
sds	mympd_api_timer_list (struct t_timer_list *timer_list, sds buffer, unsigned request_id, const char *partition)
sds	mympd_api_timer_get (struct t_timer_list *timer_list, sds buffer, unsigned request_id, unsigned timer_id)
bool	mympd_api_timer_file_read (struct t_timer_list *timer_list, sds workdir)
bool	mympd_api_timer_file_save (struct t_timer_list *timer_list, sds workdir)

Detailed Description

myMPD timer API

Typedef Documentation

timer_handler

typedef void(* timer_handler) (unsigned timer_id, struct t_timer_definition *definition, struct t_mympd_state *mympd_state)

Callback functions for timers

Enumeration Type Documentation

timer_intervals

enum timer_intervals

Timer interval types

Function Documentation

mympd_api_timer_add()

bool mympd_api_timer_add	(	struct t_timer_list *	l,
		int	timeout,
		int	interval,
		timer_handler	handler,
		unsigned	timer_id,
		struct t_timer_definition *	definition )

Adds a timer with given timer_id

Parameters

l	timer list
timeout	seconds when timer will run (offset from now)
interval	reschedule timer interval
handler	timer callback function
timer_id	id of the timer
definition	pointer to timer definition (GUI) or NULL

Returns

true on success, else false

mympd_api_timer_add_uniq()

bool mympd_api_timer_add_uniq	(	struct t_timer_list *	l,
		int	timeout,
		int	interval,
		timer_handler	handler,
		unsigned	timer_id,
		struct t_timer_definition *	definition )

Adds a timer with given timer_id only if timer_id is not already added

Parameters

l	timer list
timeout	seconds when timer will run (offset from now)
interval	reschedule timer interval
handler	timer callback function
timer_id	id of the timer
definition	pointer to timer definition (GUI) or NULL

Returns

true on success, else false

mympd_api_timer_calc_starttime()

int mympd_api_timer_calc_starttime	(	int	start_hour,
		int	start_minute,
		int	interval )

Calculates the offset from now for next start time for a timer

Parameters

start_hour	start hour
start_minute	start minute
interval	reschedule interval

Returns

unix timestamp of next start

mympd_api_timer_check()

bool mympd_api_timer_check	(	int	fd,
		struct t_timer_list *	timer_list,
		struct t_mympd_state *	mympd_state )

Checks the timer event and executes the callback function

Parameters

fd	fd with POLLIN event
timer_list	timer list
mympd_state	Pointer to mympd_state

Returns

true on success, else false

mympd_api_timer_file_read()

bool mympd_api_timer_file_read	(	struct t_timer_list *	timer_list,
		sds	workdir )

Reads the timer file and populates the timer list

Parameters

timer_list	timer list
workdir	working directory

Returns

true on success, else false

mympd_api_timer_file_save()

bool mympd_api_timer_file_save	(	struct t_timer_list *	timer_list,
		sds	workdir )

Saves the timer list to the timer file on disc

Parameters

timer_list	timer list
workdir	working directory

Returns

true on success, else false

mympd_api_timer_free_definition()

void * mympd_api_timer_free_definition

(

struct t_timer_definition *

timer_def

)

Frees a timer definition

Parameters

timer_def

pointer to timer definition

Returns

NULL

mympd_api_timer_get()

sds mympd_api_timer_get	(	struct t_timer_list *	timer_list,
		sds	buffer,
		unsigned	request_id,
		unsigned	timer_id )

Gets the timer with the given id as an jsonrpc response

Parameters

timer_list	timer list
buffer	already allocated sds string to append the response
request_id	jsonrpc request id
timer_id	timer id

Returns

pointer to buffer

mympd_api_timer_list()

sds mympd_api_timer_list	(	struct t_timer_list *	timer_list,
		sds	buffer,
		unsigned	request_id,
		const char *	partition )

Gets the timer list as an jsonrpc response

Parameters

timer_list	timer list
buffer	already allocated sds string to append the response
request_id	jsonrpc request id
partition	mpd partition

Returns

pointer to buffer

mympd_api_timer_parse()

struct t_timer_definition * mympd_api_timer_parse	(	sds	str,
		const char *	partition,
		struct t_json_parse_error *	error )

Parses a json object string to a timer definition.

Parameters

str	string to parse
partition	mpd partition
error	pointer to sds string to populate an error string

Returns

pointer to timer_def or NULL on error

mympd_api_timer_remove()

bool mympd_api_timer_remove	(	struct t_timer_list *	l,
		unsigned	timer_id )

Removes a timer with given id

Parameters

l	timer list
timer_id	timer id to remove

Returns

true on success, else false

mympd_api_timer_remove_by_fd()

bool mympd_api_timer_remove_by_fd	(	struct t_timer_list *	l,
		int	fd )

Removes a timer with given fd

Parameters

l	Timer list
fd	Timer fd to remove

Returns

true on success, else false

mympd_api_timer_remove_partition()

int mympd_api_timer_remove_partition	(	struct t_timer_list *	l,
		sds	partition )

Removes all user defines timers for specified partition

Parameters

l	Timer list
partition	Partition name

Returns

Number of removed timers or -1 on error

mympd_api_timer_replace()

bool mympd_api_timer_replace	(	struct t_timer_list *	l,
		int	timeout,
		int	interval,
		timer_handler	handler,
		unsigned	timer_id,
		struct t_timer_definition *	definition )

Replaces a timer with given timer_id

Parameters

l	timer list
timeout	seconds when timer will run
interval	reschedule timer interval
handler	timer callback function
timer_id	id of the timer
definition	pointer to timer definition (GUI) or NULL

Returns

true on success, else false

mympd_api_timer_save()

bool mympd_api_timer_save	(	struct t_partition_state *	partition_state,
		struct t_timer_list *	timer_list,
		int	interval,
		unsigned	timerid,
		struct t_timer_definition *	timer_def,
		sds *	error )

Saves a new or existing timer

Parameters

partition_state	pointer to partition state
timer_list	pointer to timer list
interval	timer interval
timerid	the timerid
timer_def	pointer to populated timer definition
error	pointer to already allocated sds string to append an error message

Returns

true on success, else false

mympd_api_timer_timerlist_clear()

void mympd_api_timer_timerlist_clear

(

struct t_timer_list *

l

)

Clears the timer list

Parameters

l	timer list

mympd_api_timer_timerlist_init()

void mympd_api_timer_timerlist_init

(

struct t_timer_list *

l

)

Public functions Inits the timer list

Parameters

l	pointer to already allocated timer list

mympd_api_timer_toggle()

bool mympd_api_timer_toggle	(	struct t_timer_list *	l,
		unsigned	timer_id,
		sds *	error )

Toggles the enabled state of a timer

Parameters

l	timer list
timer_id	timer id to toggle
error	pointer to already allocated sds string to append an error message

Returns

true on success, else false
