trigger.h File Reference

myMPD trigger API More...

#include "dist/sds/sds.h"
#include "src/lib/list.h"
#include "src/lib/sticker.h"

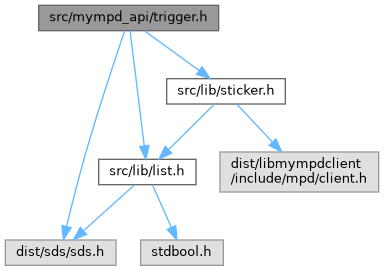

Include dependency graph for trigger.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	t_event_data
struct	t_trigger_data

Enumerations
enum	trigger_events {   TRIGGER_MYMPD_SCROBBLE = -1 , TRIGGER_MYMPD_START = -2 , TRIGGER_MYMPD_STOP = -3 , TRIGGER_MYMPD_CONNECTED = -4 ,   TRIGGER_MYMPD_DISCONNECTED = -5 , TRIGGER_MYMPD_FEEDBACK = -6 , TRIGGER_MYMPD_SKIPPED = -7 , TRIGGER_MYMPD_LYRICS = -8 ,   TRIGGER_MYMPD_ALBUMART = -9 , TRIGGER_MYMPD_TAGART = -10 , TRIGGER_MYMPD_JUKEBOX = -11 , TRIGGER_MYMPD_SMARTPLS = - 12 ,   TRIGGER_MYMPD_BGIMAGE = -13 , TRIGGER_MPD_DATABASE = 0x1 , TRIGGER_MPD_STORED_PLAYLIST = 0x2 , TRIGGER_MPD_QUEUE = 0x4 ,   TRIGGER_MPD_PLAYER = 0x8 , TRIGGER_MPD_MIXER = 0x10 , TRIGGER_MPD_OUTPUT = 0x20 , TRIGGER_MPD_OPTIONS = 0x40 ,   TRIGGER_MPD_UPDATE = 0x80 , TRIGGER_MPD_STICKER = 0x100 , TRIGGER_MPD_SUBSCRIPTION = 0x200 , TRIGGER_MPD_MESSAGE = 0x400 ,   TRIGGER_MPD_PARTITION = 0x800 , TRIGGER_MPD_NEIGHBOR = 0x1000 , TRIGGER_MPD_MOUNT = 0x2000 }

Functions
bool	mympd_api_trigger_save (struct t_list *trigger_list, sds name, int trigger_id, int event, sds partition, struct t_trigger_data *trigger_data, sds *error)
sds	mympd_api_trigger_list (struct t_list *trigger_list, sds buffer, unsigned request_id, const char *partition)
sds	mympd_api_trigger_get (struct t_list *trigger_list, sds buffer, unsigned request_id, unsigned trigger_id)
bool	mympd_api_trigger_file_read (struct t_list *trigger_list, sds workdir)
bool	mympd_api_trigger_file_save (struct t_list *trigger_list, sds workdir)
void	mympd_api_trigger_list_clear (struct t_list *trigger_list)
int	mympd_api_trigger_execute (struct t_list *trigger_list, enum trigger_events event, const char *partition, struct t_list *arguments)
int	mympd_api_trigger_execute_http (struct t_list *trigger_list, enum trigger_events event, const char *partition, unsigned long conn_id, unsigned request_id, struct t_list *arguments)
int	mympd_api_trigger_execute_feedback (struct t_list *trigger_list, sds uri, enum mympd_feedback_type type, int value, const char *partition)
bool	mympd_api_trigger_delete (struct t_list *trigger_list, unsigned idx, sds *error)
const char *	mympd_api_event_name (int event)
sds	mympd_api_trigger_print_event_list (sds buffer)
struct t_trigger_data *	mympd_api_trigger_data_new (void)
void	mympd_api_trigger_data_free (struct t_trigger_data *trigger_data)
struct t_event_data *	mympd_api_event_data_new (int event, struct t_list *arguments)
void	mympd_api_event_data_free (struct t_event_data *event_data)
void	mympd_api_event_data_free_void (void *event_data)

Detailed Description

myMPD trigger API

Enumeration Type Documentation

trigger_events

enum trigger_events

myMPD trigger events. The list is composed of MPD idle events and myMPD specific events.

Enumerator
TRIGGER_MYMPD_SCROBBLE	myMPD scrobble event (same event is used for last played sticker / list)
TRIGGER_MYMPD_START	myMPD was started (before mpd connection)
TRIGGER_MYMPD_STOP	myMPD stops
TRIGGER_MYMPD_CONNECTED	myMPD connected to mpd event
TRIGGER_MYMPD_DISCONNECTED	myMPD disconnect from mpd event
TRIGGER_MYMPD_FEEDBACK	myMPD feedback event (love/hate)
TRIGGER_MYMPD_SKIPPED	myMPD song skipped (same event is used for skipped sticker)
TRIGGER_MYMPD_LYRICS	myMPD lyrics
TRIGGER_MYMPD_ALBUMART	myMPD albumart
TRIGGER_MYMPD_TAGART	myMPD tagart
TRIGGER_MYMPD_JUKEBOX	myMPD jukebox
TRIGGER_MYMPD_SMARTPLS	myMPD smart playlist creation
TRIGGER_MYMPD_BGIMAGE	myMPD background image
TRIGGER_MPD_DATABASE	mpd database has changed
TRIGGER_MPD_STORED_PLAYLIST	mpd playlist idle event
TRIGGER_MPD_QUEUE	mpd queue idle event
TRIGGER_MPD_PLAYER	mpd player idle event
TRIGGER_MPD_MIXER	mpd mixer idle event (volume)
TRIGGER_MPD_OUTPUT	mpd output idle event
TRIGGER_MPD_OPTIONS	mpd options idle event
TRIGGER_MPD_UPDATE	mpd database idle event (started or finished)
TRIGGER_MPD_STICKER	mpd sticker idle event
TRIGGER_MPD_SUBSCRIPTION	mpd subscription idle event
TRIGGER_MPD_MESSAGE	mpd message idle event
TRIGGER_MPD_PARTITION	mpd partition idle event
TRIGGER_MPD_NEIGHBOR	mpd neighbor idle event
TRIGGER_MPD_MOUNT	mpd mount idle event

Function Documentation

mympd_api_event_data_free()

void mympd_api_event_data_free

(

struct t_event_data *

event_data

)

Frees the t_event_data struct and arguments list

Parameters

event_data

pointer to event data

mympd_api_event_data_free_void()

void mympd_api_event_data_free_void

(

void *

event_data

)

Frees the t_event_data struct and arguments list

Parameters

event_data

pointer to event data

mympd_api_event_data_new()

struct t_event_data * mympd_api_event_data_new	(	int	event,
		struct t_list *	arguments
	)

Creates and initializes the t_event_data struct

Parameters

event	Event id
arguments	Arguments list, can be null

Returns

Pointer to allocated t_event_data struct

mympd_api_event_name()

const char * mympd_api_event_name

(

int

event

)

Public functions Returns the event name

Parameters

event

event to resolv

Returns

trigger as string

mympd_api_trigger_data_free()

void mympd_api_trigger_data_free

(

struct t_trigger_data *

trigger_data

)

Frees the t_trigger_data struct

Parameters

trigger_data

pointer to trigger data

mympd_api_trigger_data_new()

struct t_trigger_data * mympd_api_trigger_data_new

(

void

)

Creates and initializes the t_trigger_data struct

Returns

pointer to allocated t_trigger_data struct

mympd_api_trigger_delete()

bool mympd_api_trigger_delete	(	struct t_list *	trigger_list,
		unsigned	idx,
		sds *	error
	)

Deletes a trigger

Parameters

trigger_list	trigger list
idx	index of trigger node to remove
error	already allocated sds string to append the error message

Returns

true on success, else false

mympd_api_trigger_execute()

int mympd_api_trigger_execute	(	struct t_list *	trigger_list,
		enum trigger_events	event,
		const char *	partition,
		struct t_list *	arguments
	)

Executes all scripts associated with the trigger

Parameters

trigger_list	trigger list
event	trigger to execute scripts for
partition	mpd partition
arguments	list of script arguments

Returns

number of executed triggers

mympd_api_trigger_execute_feedback()

int mympd_api_trigger_execute_feedback	(	struct t_list *	trigger_list,
		sds	uri,
		enum mympd_feedback_type	type,
		int	value,
		const char *	partition
	)

Executes the feedback trigger

Parameters

trigger_list	trigger list
uri	feedback uri
type	feedback type
value	the feedback
partition	mpd partition

Returns

number of executed triggers

mympd_api_trigger_execute_http()

int mympd_api_trigger_execute_http	(	struct t_list *	trigger_list,
		enum trigger_events	event,
		const char *	partition,
		unsigned long	conn_id,
		unsigned	request_id,
		struct t_list *	arguments
	)

Executes triggers for http output

Parameters

trigger_list	trigger list
event	trigger to execute scripts for
partition	mpd partition
conn_id	mongoose connection id
request_id	jsonprc id
arguments	list of script arguments or NULL for no arguments

Returns

number of executed triggers

mympd_api_trigger_file_read()

bool mympd_api_trigger_file_read	(	struct t_list *	trigger_list,
		sds	workdir
	)

Reads the trigger file from disc and populates the trigger list

Parameters

trigger_list	trigger list
workdir	working directory

Returns

true on success, else false

mympd_api_trigger_file_save()

bool mympd_api_trigger_file_save	(	struct t_list *	trigger_list,
		sds	workdir
	)

Saves the trigger list to disc

Parameters

trigger_list	trigger list
workdir	working directory

Returns

true on success, else false

mympd_api_trigger_get()

sds mympd_api_trigger_get	(	struct t_list *	trigger_list,
		sds	buffer,
		unsigned	request_id,
		unsigned	trigger_id
	)

Prints the trigger with given id as jsonrpc response

Parameters

trigger_list	trigger list
buffer	already allocated sds string to append the response
request_id	jsonrpc request id
trigger_id	trigger id to print

Returns

pointer to buffer

mympd_api_trigger_list()

sds mympd_api_trigger_list	(	struct t_list *	trigger_list,
		sds	buffer,
		unsigned	request_id,
		const char *	partition
	)

Prints the trigger list as jsonrpc response

Parameters

trigger_list	trigger list
buffer	already allocated sds string to append the response
request_id	jsonrpc request id
partition	mpd partition

Returns

pointer to buffer

mympd_api_trigger_list_clear()

void mympd_api_trigger_list_clear

(

struct t_list *

trigger_list

)

Clears the trigger list

Parameters

trigger_list

trigger list to clear

mympd_api_trigger_print_event_list()

sds mympd_api_trigger_print_event_list

(

sds

buffer

)

Prints all events names as json string

Parameters

buffer

already allocated sds string to append the response

Returns

pointer to buffer

mympd_api_trigger_save()

bool mympd_api_trigger_save	(	struct t_list *	trigger_list,
		sds	name,
		int	trigger_id,
		int	event,
		sds	partition,
		struct t_trigger_data *	trigger_data,
		sds *	error
	)

Saves a trigger

Parameters

trigger_list	trigger list
name	trigger name
trigger_id	existing trigger id to replace or -1
event	trigger event
partition	mpd partition
trigger_data	the trigger data (script name and arguments)
error	already allocated sds string to append the error message

Returns

true on success, else false
